Brand:
Double Wolf
Applications
| 1. **Engine Specifications:** |

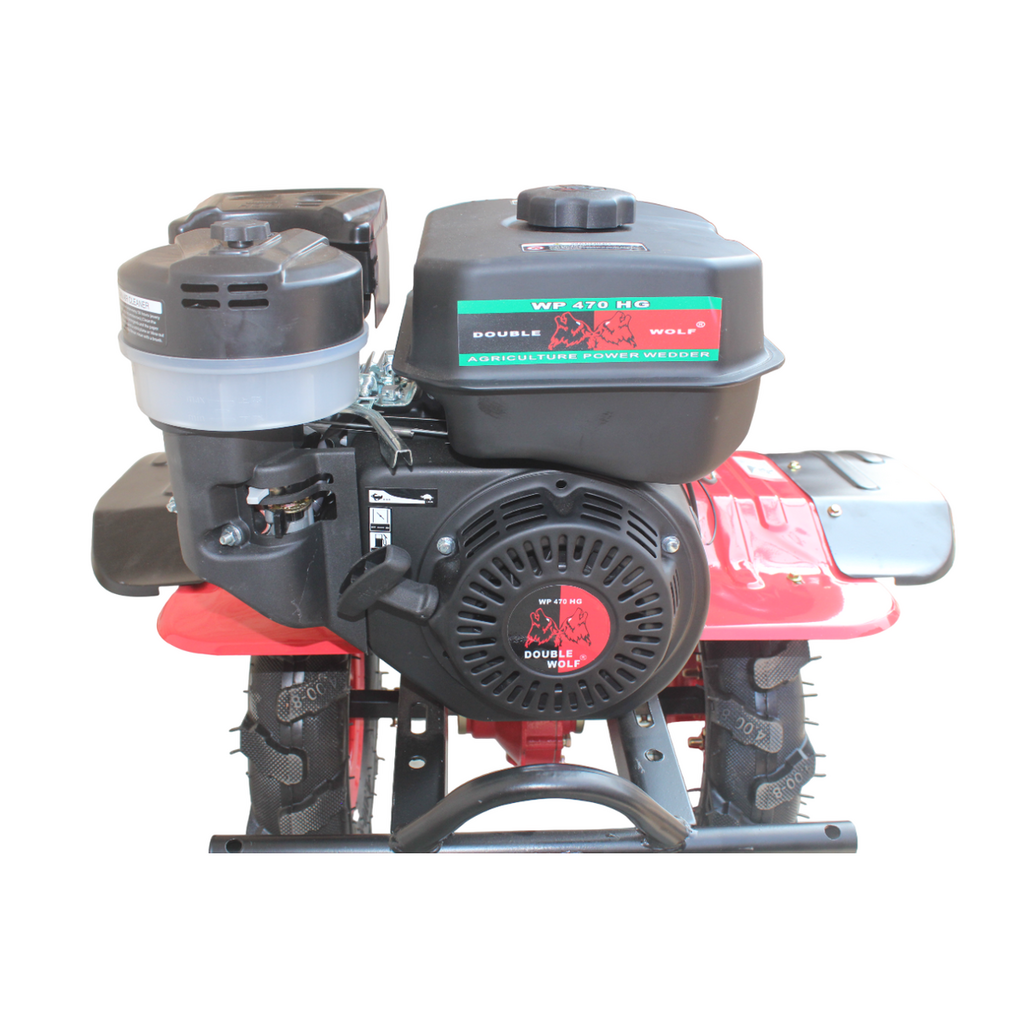

| - **Engine Model:** 170F |
| - **Engine Type:** Single-cylinder, 4-stroke, air-cooled, petrol engine |
| - **Displacement:** 212 cc |
| - **Maximum Power Output:** 7.5 HP at 3600 RPM |
| - **Fuel Type:** Petrol |
| 2. **Fuel and Oil System:** |
| - **Fuel Tank Capacity:** 5.5 liters |
| - **Lubrication System:** Forced lubrication |
| - **Fuel Consumption:** About 700ML .1 liters/hour at full load |
| 3. **Transmission:** |
| - **Type:** Gear transmission |
| - **Gear System:** 2 forward gears and 1 reverse gear |

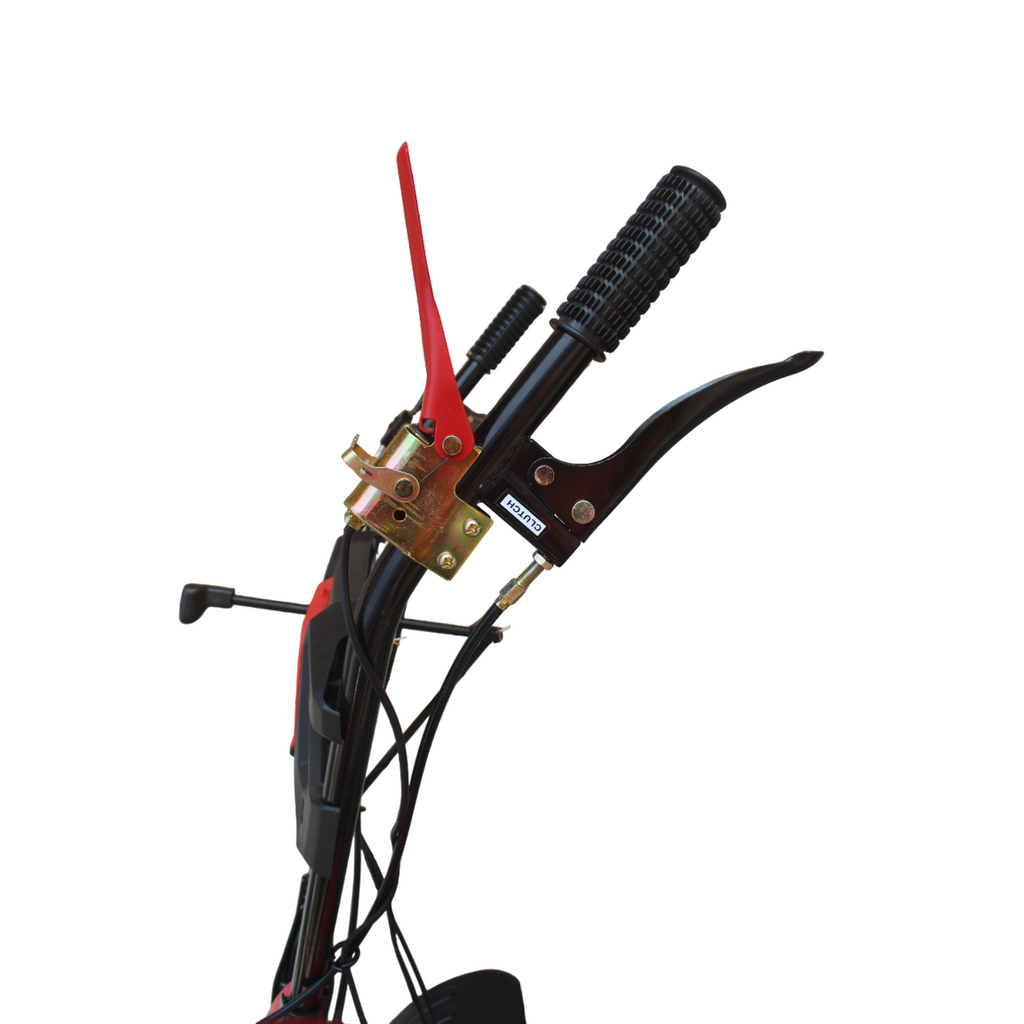

| - **Clutch Type:** Wet multi-plate clutch |
| 4. **Rotary Tilling System:** |
| - **Tilling Width:** Adjustable, typically 800 mm to 1000 mm |
| - **Tilling Depth:** 100 mm to 150 mm (depending on soil conditions) |

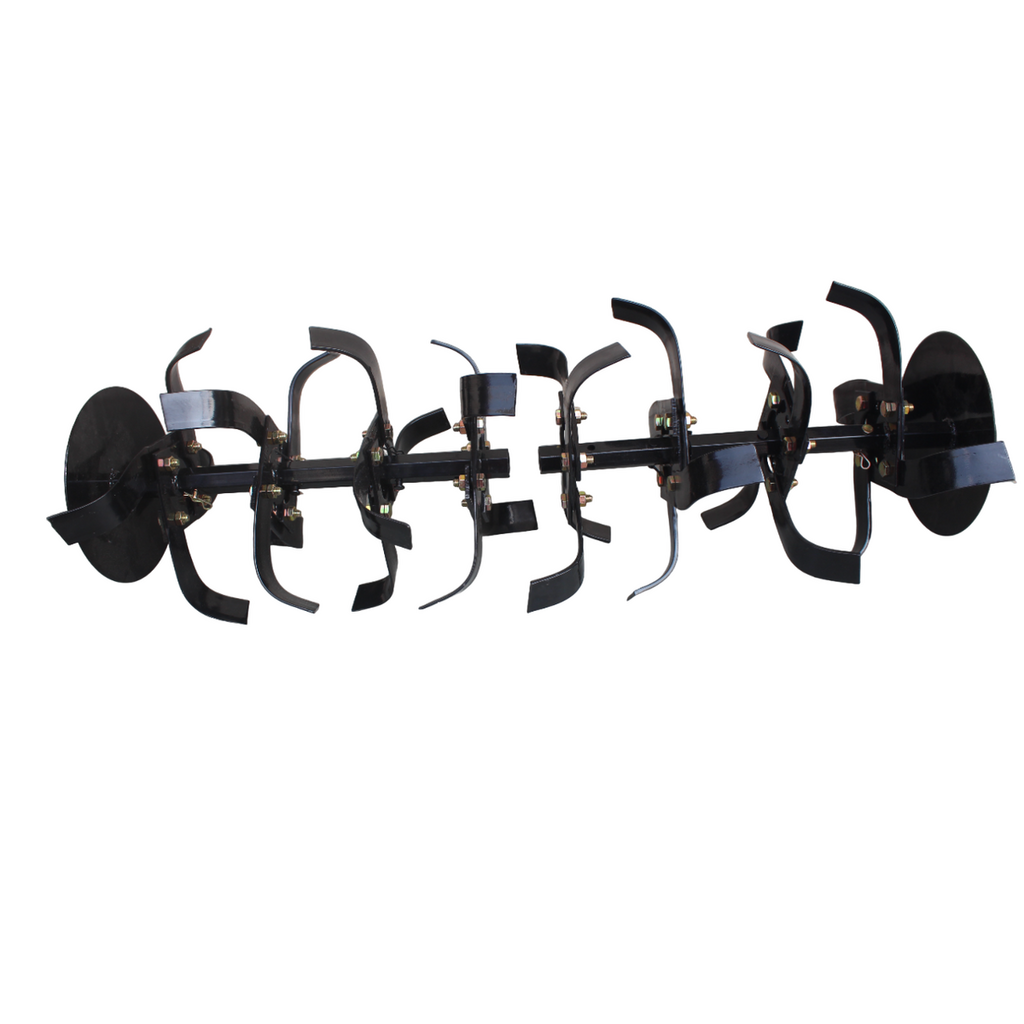

| - **Blades:** High carbon steel, heat-treated for durability |
| - **Blade Set:** 32 pieces GROUP 2+1+1 |
| 6. **Features:** |
| - **Starting System:** Recoil start (manual) |

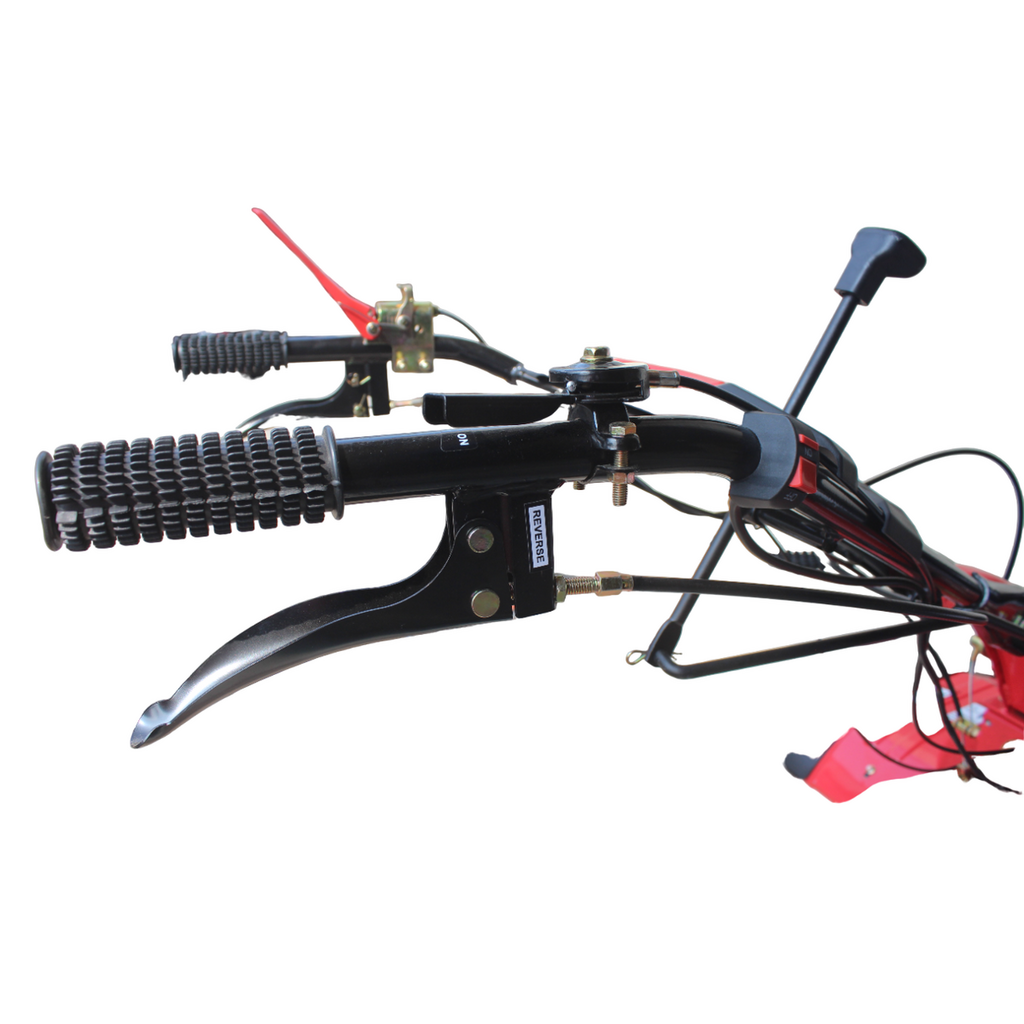

| - **Handle Type:** Adjustable and ergonomically designed for operator comfort |
| - **Cooling System:** Air-cooled with optimized fins for efficient heat dissipation |
| - **Vibration Reduction:** Anti-vibration system for smoother operation |
| 1. **Inter-row Cultivation:** |
| 2. **Weed Removal in Paddy and Dry Fields:** |
| 3. **Soil Preparation for Sowing:** |
| 4. **Fertilizer Mixing in the Soil:** |
| 5. **Soil Aeration:** |
| 6. **Hilling and Ridging:** |
| 7. **Land Preparation for Nursery Beds:** |
